UNITY Rainscreen Cladding

Metalline offer a wide range of fire-rated aluminium rainscreen cladding panels and facade systems. Perfect for use on a diverse range of construction projects, our UNITY cladding systems have been fully tested against the required standards for fire and structural performance.

Metalline’s UNITY range of aluminum cladding panels have been designed to deliver a non-combustible solution for typical rainscreen applications. From secret-fix Hook-On cassettes to flat face-fixed panels, the UNITY range offers architects, specifiers and contractors a fully tested and compliant rainscreen cladding system for both new build and cladding remediation projects.

Products

Panels & Systems

The UNITY fire-rated rainscreen cladding panel is produced using a solid aluminium substrate that can be fitted as either a cassette or as a flat faced panel fixed onto an appropriately designed support framework. The range includes a flat, through fix panel, a discrete fix cassette, a secret fix ‘hook-on’ cassette plus either folded or extruded plank systems. Metalline’s CLAD-LINE framing system offers support options for each panel within the UNITY range. From standard T and L rails with supporting brackets to the innovative Floor 2 Floor Framing System, Metalline can provide full system solutions for both new build and remediation projects.

Testing & Certification

All UNITY systems have undergone rigorous testing to CWCT standards plus reaction to fire testing to BS EN 13501-1. Our anodised or pre-coated aluminium options provide A1 rated solutions while powder coated aluminium provides an A2-s1,d0 reaction to fire classification. UNITY powder coated panels have been tested in accordance with EN 13501-1 as close as possible to their end use application. This certification covers powder coated aluminium fixed back to aluminium profiles with horizontal and vertical joints, the appropriate ventilation space plus a mineral wool substrate.

Fire Performance

Structural Performance

Finishes

Anodised Aluminium (A1 classification to BS EN 13501-1) – All anodised finishes available with a lifetime finish warranty. Anodised finishes require little if any maintenance.

Pre-coated Aluminium (A1 classification to BS EN 13501-1) – All RAL colours plus special finishes available in either a PVdF or HDPUR finish. Pre-coated aluminium can be subject to minimum order quantities and comes with up to a 40-year project specific coating warranty. Periodic maintenance will be required as part of the finish warranty.

Powder Coated Aluminium (A2-s1,d0 classification to BS EN 13501-1) – Powder coating offers a durable and versatile finish to an aluminium rainscreen panel. Available in all RAL colours plus special finishes including woodgrain, stone and corten effect. Up to 40-year project specific coating warranties are available and maintenance will be required as part of the finish warranty.

To find out more about our finishes, please click here.

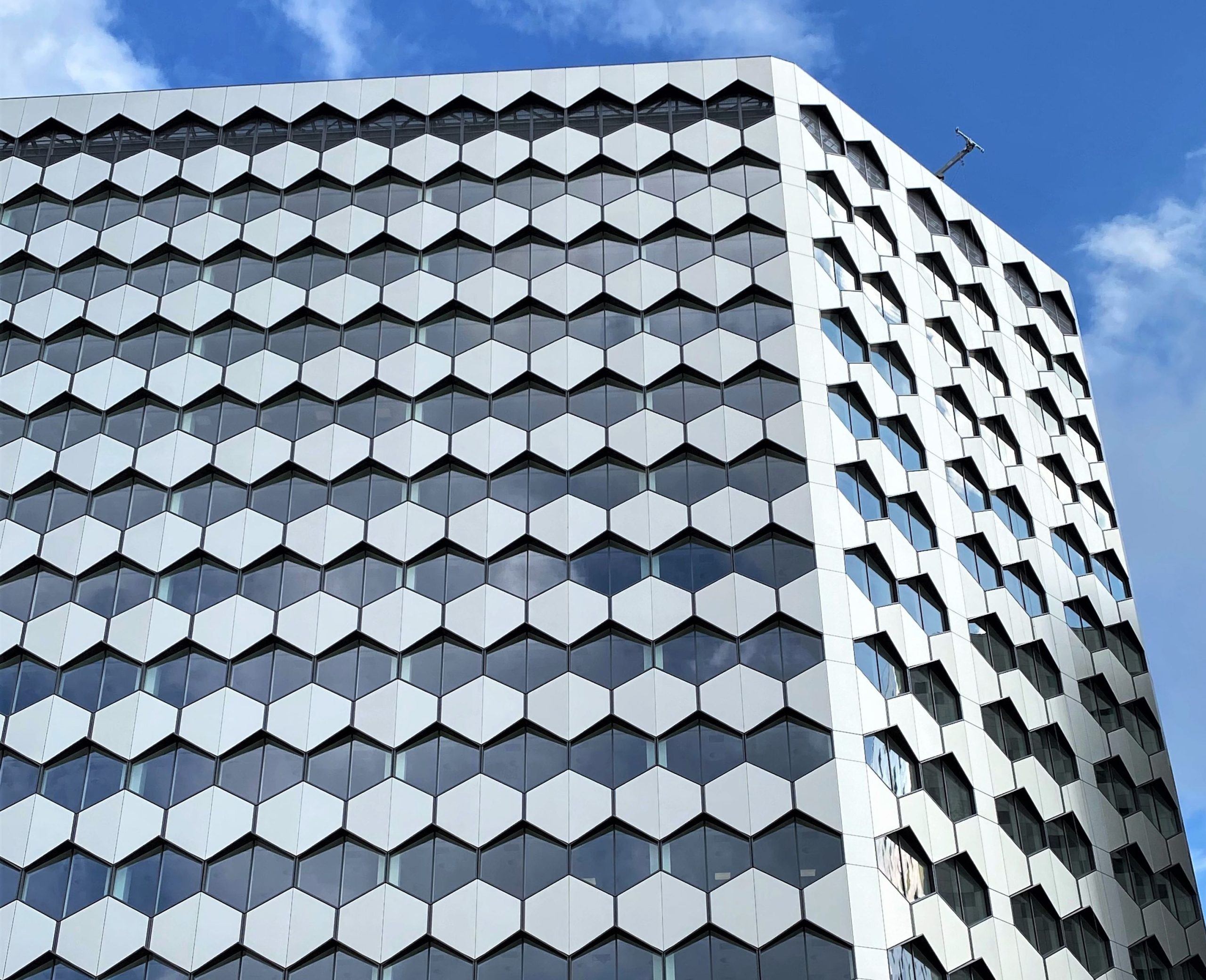

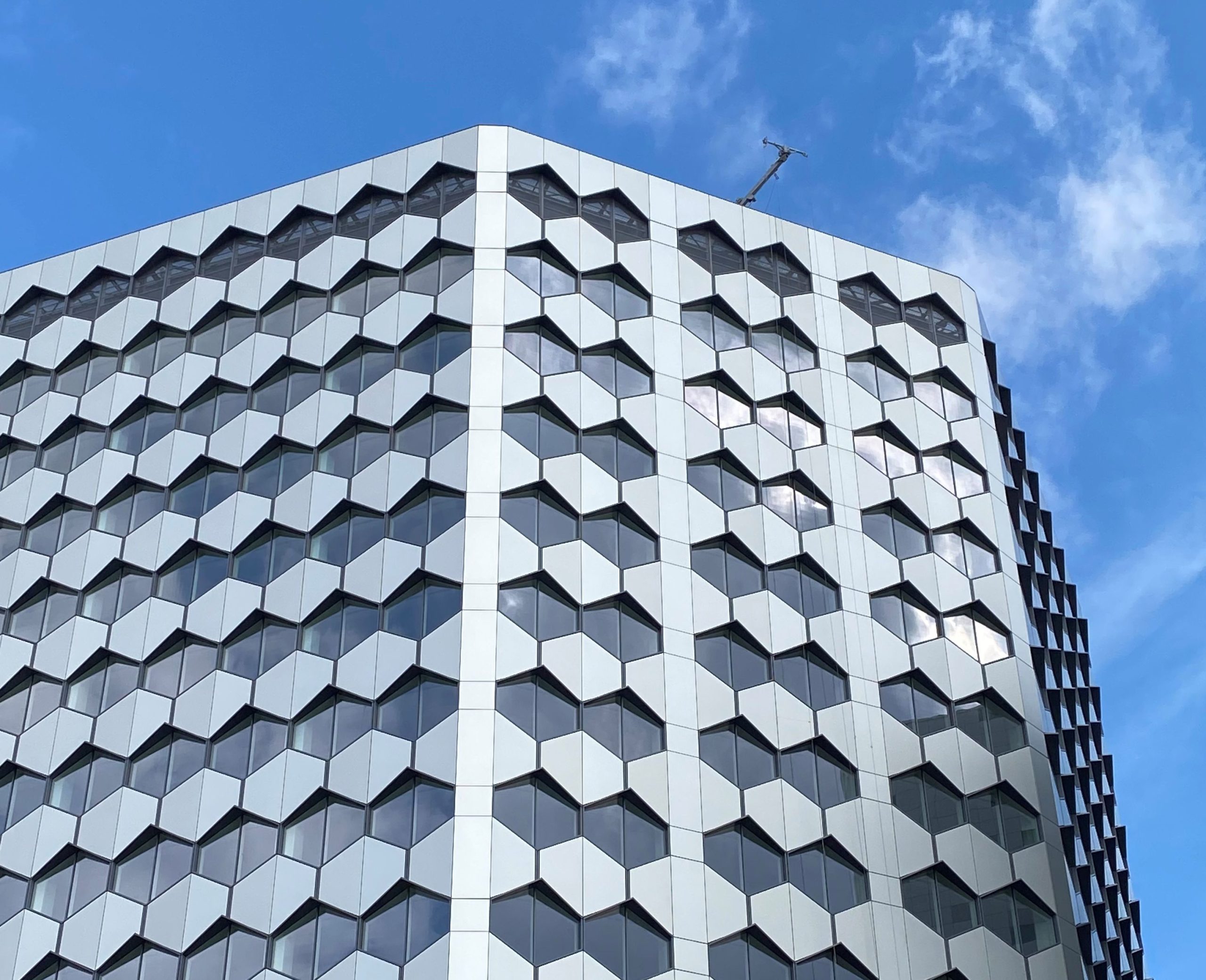

Gallery
