UNITY Floor 2 Floor Framing System

The UNITY Floor 2 Floor Framing System has been designed to accommodate, flat, discrete-fix and hook-on rainscreen panels and is fully compliant with all types of A1 and A2 facade panels including aluminium, Rockpanel, fibre cement, ACM and terracotta.

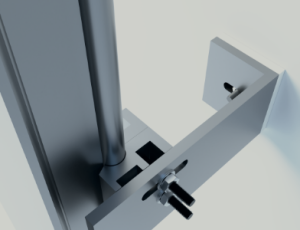

UNITY Floor 2 Floor Framing System spans from floor slab to floor slab, reducing the requirement for multiple Helping Hand brackets and supporting Top Hats. This saves considerable time and money on installation costs, simplifies the design process, allows for greater adjustment and reduces the requirement for fixings and brackets by up to 90%.

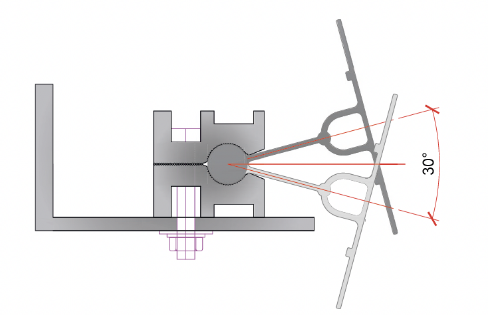

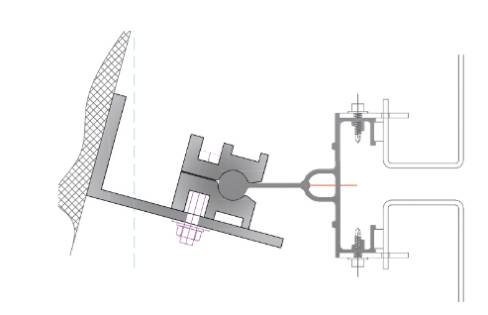

The innovative ball and socket design means the system is ideal for high rise developments and cladding replacements. The maximum amount of adjustability helps to tackle the challenges often prevalent on existing buildings.

Features & Benefits

DUMMY TEXT
Reaction to fire performance
Anodised aluminium – A1 classification to BS EN13501-1
Pre-coated aluminium – A1 classification to BS EN13501-1
Powder coated aluminium – A2- s1,d0 classification to BS EN13501-1
Superior reaction to fire testing of powder coated panels
Powder coated panels tested fixed back to aluminium rails with horizontal and vertical joints, the appropriate ventilation space and a mineral wool substrate. All colours covered by the test’s Field of Application
Impact resistance
Soft & hard body impacts fully tested to CWCT TN75/76 Standards
Wind resistance
Fully tested to CWCT standards for serviceability and safety
Dynamic water resistance
Fully tested to CWCT standards
Simplifies design and installation
Reduces labour costs
Maximum adjustment in all directions
Ideal for use with faceted facades
Avoids fixing into non-structural infill
Solid Aluminium - Non-combustible
Sectional properties available upon request

Technical

Ideal for high rise developments and cladding replacements. The maximum amount of adjustability helps to tackle the challenges often prevalent on existing buildings.
