X-TRU Extruded Plank System

An extruded aluminium plank system which offers the ultimate in flatness and precision.

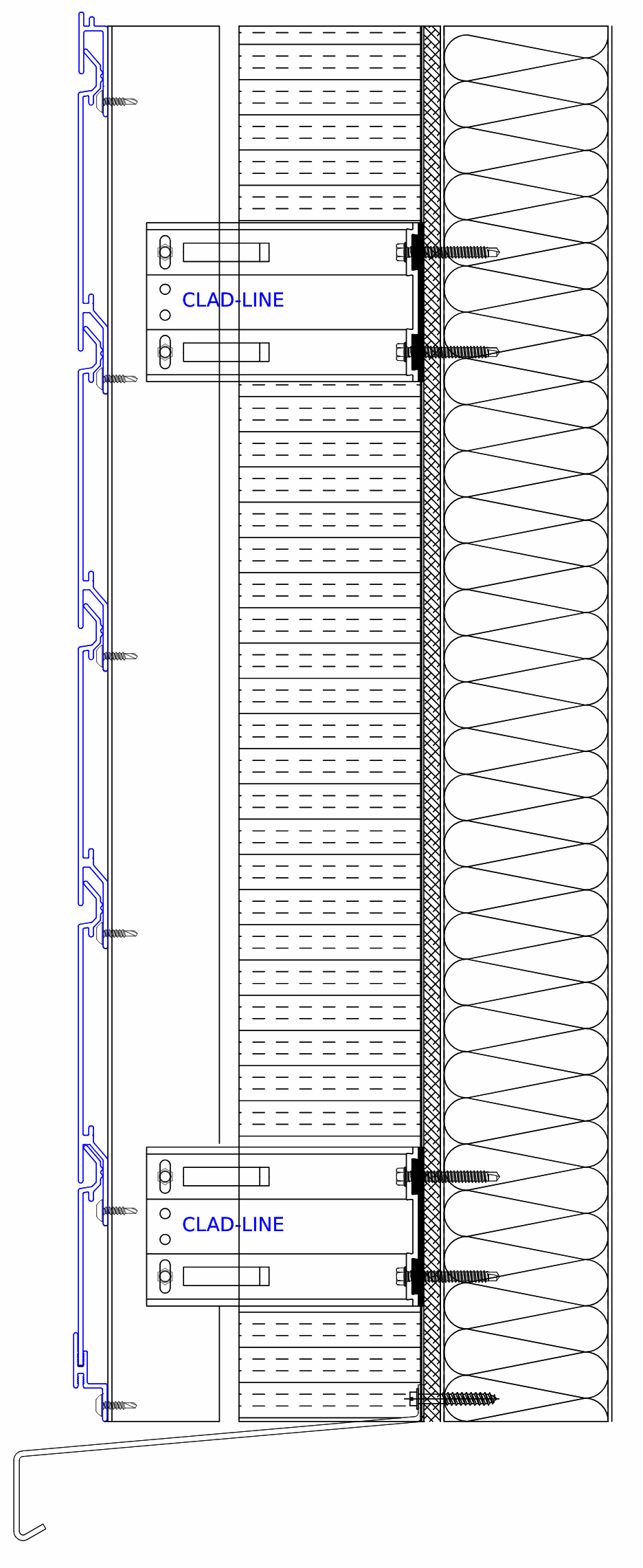

X-TRU, produced from extruded 6063-T6 aluminium, offers an interlocking, secret fixed cladding solution. Combined with fast-track installation, the inherent properties of the extruded aluminium plank deliver an ultra-flat and accurate cladding panel and is available in both anodised and powder coated finishes. X-TRU can be installed both horizontally and vertically and can be supported using the CLAD-LINE CL1, CL1-HA or Floor 2 Floor Framing System.

Features & Benefits

DUMMY TEXT
Reaction to fire performance
Anodised aluminium – A1 classification to EN13501-1
Pre-coated aluminium – A1 classification to EN13501-1
Powder coated aluminium – A2- s1,d0 classification to EN13501-1
Superior reaction to fire testing of powder coated panels
Powder coated panels tested fixed back to aluminium rails with horizontal and vertical joints, the appropriate ventilation space and a mineral wool substrate. All colours covered by the test’s Field of Application
Impact resistance
Soft & hard body impacts fully tested to CWCT TN75/76 Standards
Wind resistance
Fully tested to CWCT standards for serviceability and safety
Dynamic water resistance
Fully tested to CWCT standards
Seamless design
Independently tested & certified to Fire Safety classifications
Accurate & Robust
Multitude of finishing options available
Timber/Wood Grain effect, PPC and Anodised.
Variety of lengths available
Installed Horizontally or Vertically
Recyclable
Easy to install & secret fix
